XY系列向列液晶空间光调制器

我们根据客户的应用要求,提供个性化的定制方案!


6000Hz底板刷新率,有效消除相位纹波,液晶响应速度很快,相位调制量最高可达6π,光能利用效率达95%,损伤阈值高,可实现纯相位调制,纯振幅调制,相位振幅混合调制。


Meadowlark公司的 XY 系列空间光调制器(SLM)具备多种的设计,具有广泛光学领域,现已在全球的科研实验室广泛使用。XY系列液晶空间光调制器是一类二维可编程的光学器件,可以对入射光进行单像素控制,可以实现纯相位、纯振幅以及位相振幅的混合调制。


XY 系列以及空间光调制器(SLM)具有6KHz寻址速度,有效消除相位纹波(小于0.1%);500Hz液晶响应速度;高达95%光能利用效率,10W/cm2高损伤阈值等特点。


我们可以根据客户的具体应用要求,提供个性化的SLM定制方案!


关键词:调制器、相位调制器、反射式空间光调制器、SLM、反射式SLM、Meadowlark空间光调制器、BNS SLM、LC-SLMSpatial light modulator,Lcos,液晶空间光调制器,空间光调制器,Si-Lcos,硅基液晶



Meadowlark Optics公司提供的基于LCOS(liquid crystal on silicon)技术的XY系列二维反射式空间光调制器(原BNS SLM),可实现纯相位调制,纯振幅调制以及相位振幅混合调制,广泛应用于激光通信、全息光镊、光遗传学、神经学、显微镜、脉冲整形、天文自适应等领域。


XY系列SLM产品分类:

分辨率

Small 512 x 512

Large 512 x 512

1920 x1152

光能利用效率

Up to 95%

88%

88%

填充因子

Up to 100%

96%

95.7%

液晶响应速度

Up to 833 Hz

相位纹波

As low as 0.1%

可选波长范围

400nm-1650 nm



XY系列液晶空间光调制器产品特点:

1、100%填充因子,90-95%高衍射效率

Meadowlark公司采用独特的硅板镀膜技术,在实现100%填充因子的基础上,有效的消除了SLM高阶衍射光的能量损失,使得空间光调制器的光能利用率提高到了90-95%。

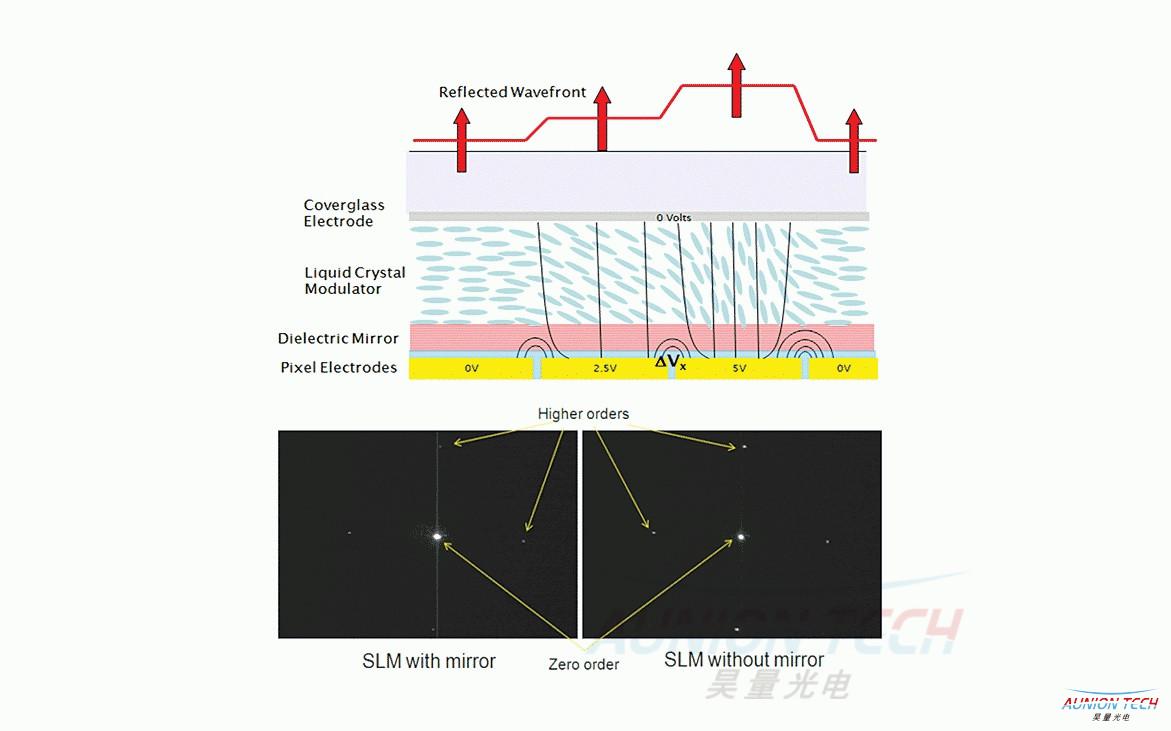

图1. SLM镀膜技术及高衍射效率


2、高速寻址有效消除相位纹波

Meadowlark公司的液晶空间光调制器(LC SLM)采用模拟寻址方式,该方式的寻址速度可达6KHz,可以非常好的消除SLM的相位纹波(可做到0.1%以内)。而holoeye等公司提供的反射式空间光调制器寻址速度为60Hz,其产生的相位纹波大都在10%以上。

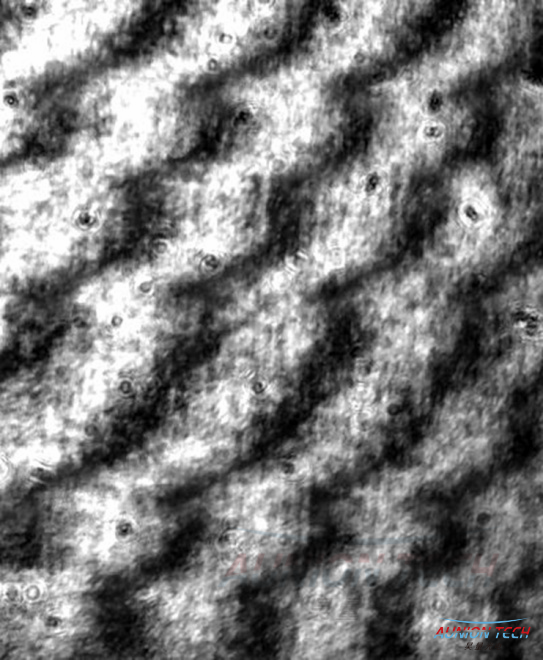

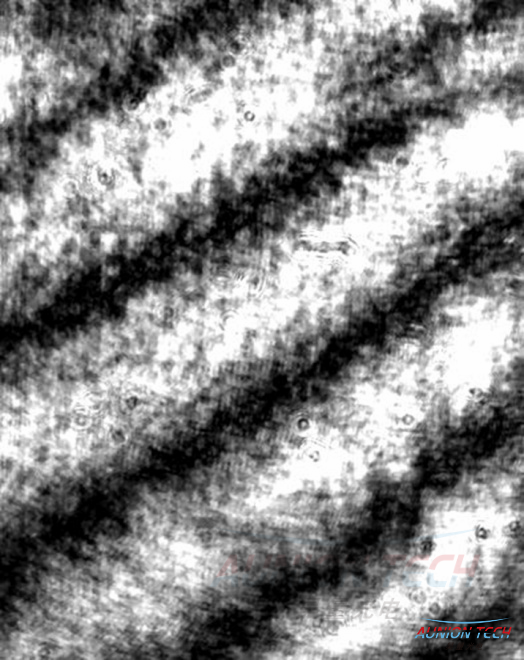

图2. 左侧为Meadowlark公司SLM相位纹波,右侧为Holoeye的SLM相位纹波


3、高损伤阈值

MLO的液晶SLM具有非常高的损伤阈值:10W/cm2 for CW Laser ;10MW/cm2 for Pulse Laser。我们的客户使用Average Power = 16 W, Rep Rate = 1 MHz, Pulse Width = 600 fs, beam diameter 5.5 mm的激光,通过检测一阶衍射衍射光的响应曲线,得到HSPDM512-1064相位型空间光调制器可承受的峰值功率密度为 110 MW/cm^2

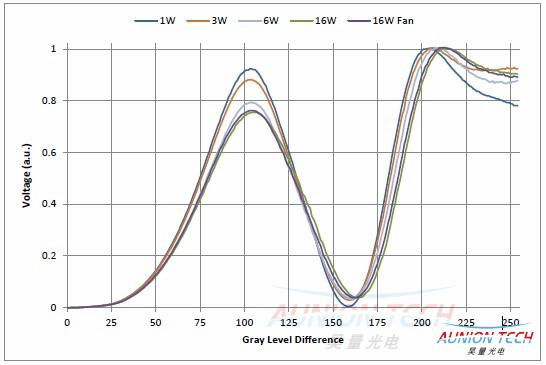

图3. 一阶衍射光的响应曲线


4、超快液晶响应速度

Meadowlark公司的快速液晶空间光调制器(SLM)采用独有的快速液晶材料同时采用瞬态向列效应技术(Transient Nematic Effects)、相位环绕技术(Phase Wrapping)、局部校准技术(Regional LUTs,实现了超高速的液晶响应速度(1~4ms)。目前MLOSLM532nm波长可实现1.5ms的液晶响应速度(位相从0调节到2π的时间),帧频可达到667Hz

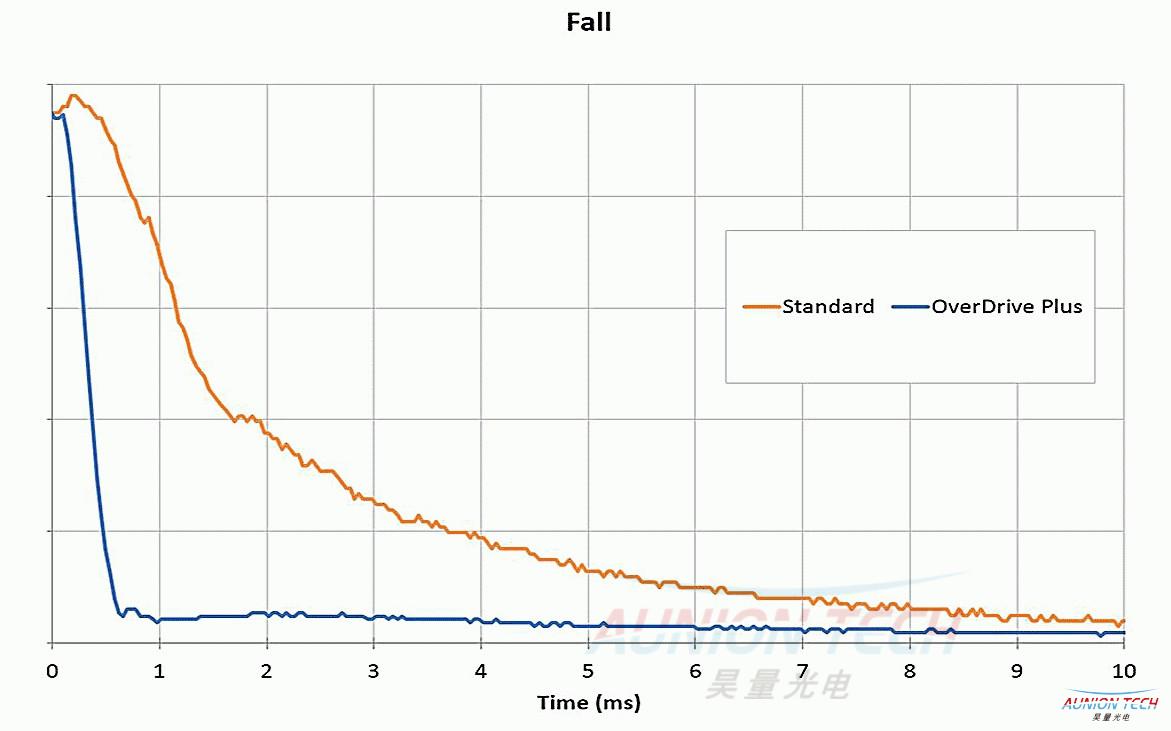

4. 快速液晶与普通液晶的响应速度对比




XY系列液晶空间光调制器应用领域:

光束偏转与控制、激光通信、全息光镊、光遗传学、神经学、显微镜、脉冲整形、天文自适应、大气湍流模拟等领域。




5.SLM用于光束偏转控制

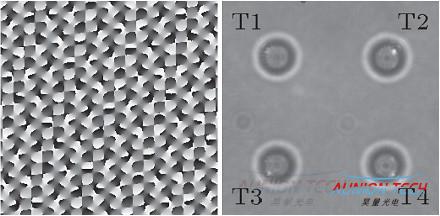

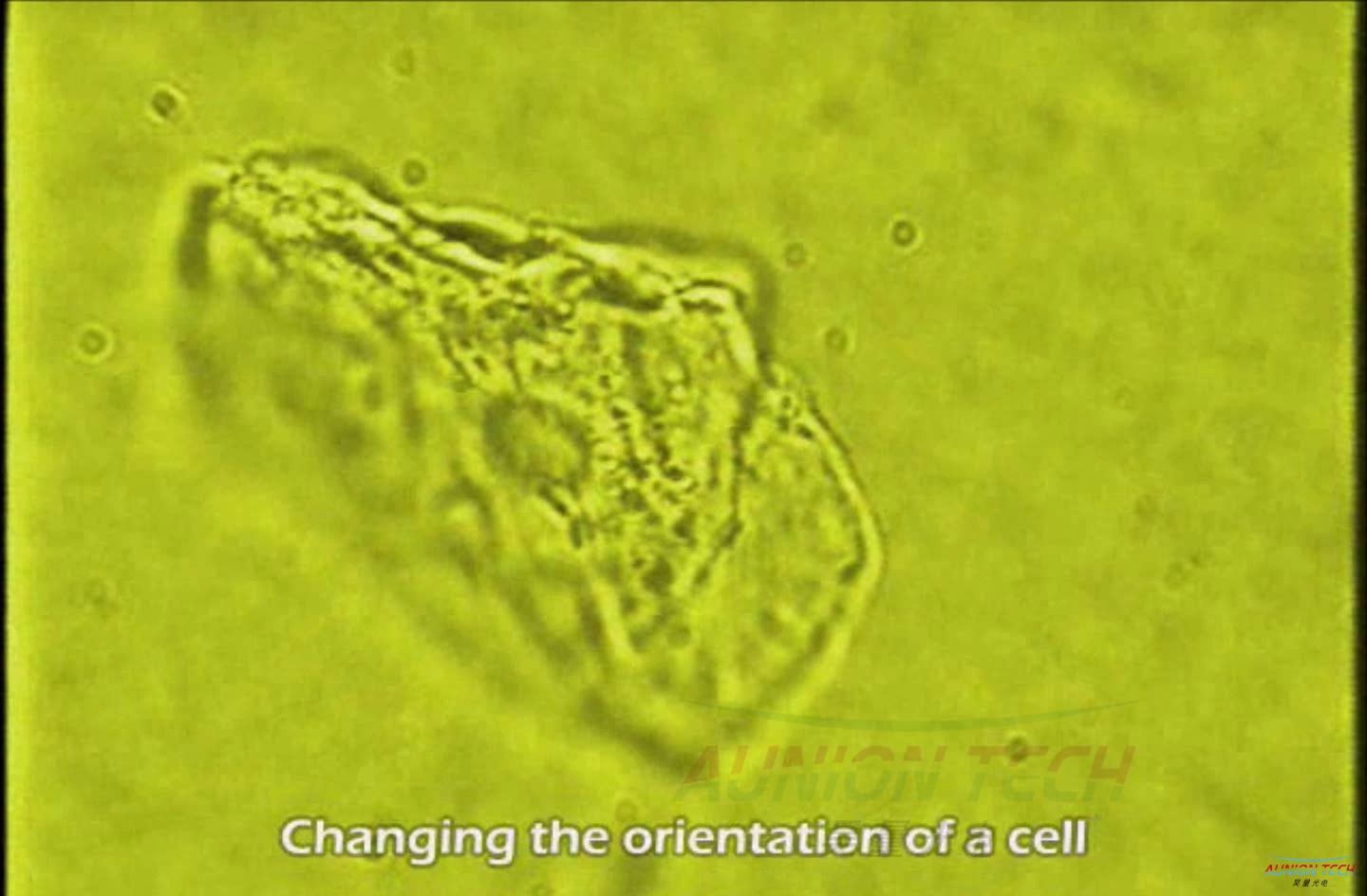

6. SLM用于全息光镊用于细胞控制

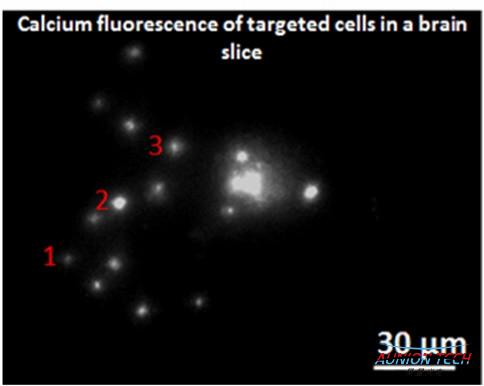

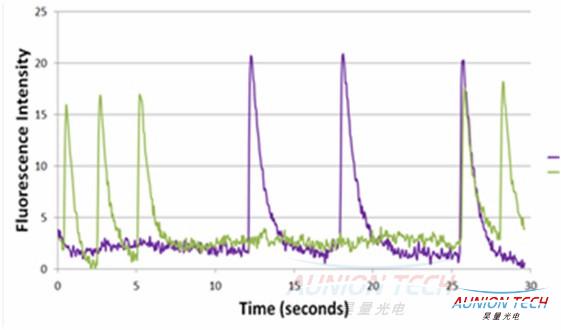

7. SLM用于神经元钙离子成像


8. 空间光调制器用于全息光镊

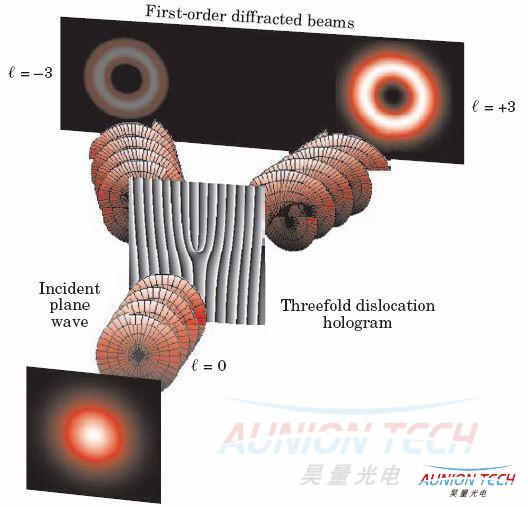

9. 空间光调制器用于轨道角动量(涡旋光
