高功率外腔可调单频量子级联激光器

目前商用市场上输出功率最高的中红外量子级联激光器

所属类别:激光器 » 中红外/量子级联激光器( 连续/脉冲/可调谐)

所属品牌:

负责人姓名:邓工(Genii)

电话:186 2116 1670 邮箱:qingtong-deng@auniontech.com


高功率连续波外腔可调单频量子级联激光器系统

目前商用市场上输出功率最高的中红外量子级联激光器



1101-46-EGC激光器系统是一款光栅外腔波长可调谐量子级联激光器系统,,TEC和准直光学元件均密封于激光头内,配置包括激光头和配套电源, 开机可用



关键字:高功率量子级联激光器,量子级联激光器,QCL激光器,中红外激光器,中红外量子级联激光器,中红外QCL激光器,QCW量子级联激光器,准连续量子级联激光器, 中红外可调谐激光器,High power broad bandwidth quantum cascade lasers, QCLs,QCL



高功率连续波外腔可调单频量子级联激光器系统

美国Pranalytica公司是世界领先的中红外和长波红外的量子级联激光器生产商,其产品主要应用于国防,军工和商用市场以及探测领域。其产品主要特点为功率高,包括连续波和脉冲型,宽谱,波长可调,多波长,以及OEM量子级联激光器



ChromaLux 激光器系统是一款光栅外腔波长可调谐单频量子级联激光器系统,,TEC和准直光学元件均密封于激光头内,配置包括激光头和配套电源, 开机可用。



Packaged quantum cascade laser

激光头部分:

工作模式  •     CW operation with the laser head at room temperature

中心波长  •     Centered at ~ 4.6 µm

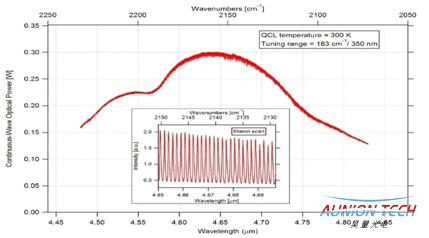

输出光谱  •     Coarse tunable using the external grating control drive over ±150 nm centered at ~ 4.6 µm

     •     Fine tuning with frequency control of better than 40 MHz

输出功率       Single frequency tunable power 200 mW over the entire tuning range; Maximum power > 300 mW at the center of the tuning range

输出线宽  •      < 40 MHz when operated in CW mode

输出光束  •      Nearly collimated

光束质量  •      Nearly diffraction limited (please call for details)

CW模式   •     Model 1101-46-EGC is operated in true CW mode by applying +5V DC to the input connector (front panel)

尺寸         •      25 cm (W), 17 cm (H), 35 cm (D)

重量              10 kg





控制器部分:

电源          •      Provides the necessary laser drive current for the quantum cascade laser (factory adjusted to deliver the specified laser output power)

温度控制   •      Provides the necessary drive current for the associated thermoelectric coolers (factory adjusted to provide the needed cooling at the optimum operating point)

波长控制   •      Using proprietary algorithms, provides all necessary internal signals for precisely setting and maintaing the desired wavelength

     •     Front panel control of wavelength selection

     •     Optional computer control of wavelength slection via USB

调制         •      Front panel input connector for modulation of the laser output from 1 kHz to 100 kHz (TTL input), limited by the power supply. The quantum cascade laser can be modulated at rates up to 1 GHz with special power supply.

保护         •      Laser power supply is equipped with multiple levels of protection for trouble free operation of the QCL

 •     Power supply has a 5 second startup delay time

 •     Laser is activated by a separate switch

尺寸         •      28 cm (W), 18 cm (H), 37 cm (D)

重量              Weight: 10 kg

供电         •      110/220 V, 4 A (max)

 •     Optional modification available for operation from a single 28V DC source with somewhat lower power consumption
