超高速斩波器(150kHz-100MHz)

光学斩波器/机械斩波器

上海昊量光电提供各种参数性能斩波器系列,可满足客户各种需求.产品包括高速斩波器(150KHZ-100Mhz),高功率斩波器(300W),中红外斩波器(最高10微米）等多种极限条件可用设备,广泛应用于工业,科研,医疗,航空航天领域.

• 基于光弹调制技术高速率光学斩波器

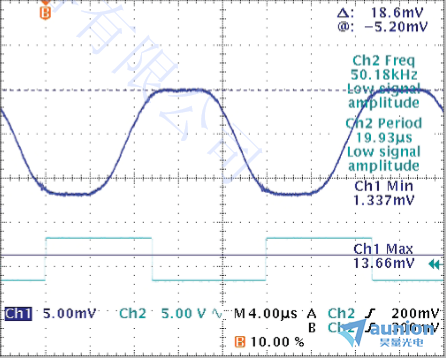

实验室观察光学斩波器的波形

美国Hinds公司引进了一种高速光学斩波器,工作在50 kHz时能够进行精确斩波.基于光弹性调制器技术,斩波器在谐振状态下进行工作.同时该产品具有功耗低,无运动部件.不会产生温度变化.该斩波器在633 nm处的消光比可达98%.外形体积小,寿命长,操作简单开箱即用.使该斩波器成为所有应用的理想选择.多功能的Hinds光学斩波器有一个标准的波长范围从200 -1200nm,可以用于大多数中,低功率激光器.

Features:
Wide acceptance angle
No moving parts
Minimal heat generation
No safety concerns
Small footprint and lightweight
Quiet operation
Low power consumption
Meets CE and RoHS compliance regulations

Options:
40 or 60 kHz operation
May be configured for high-powered lasers

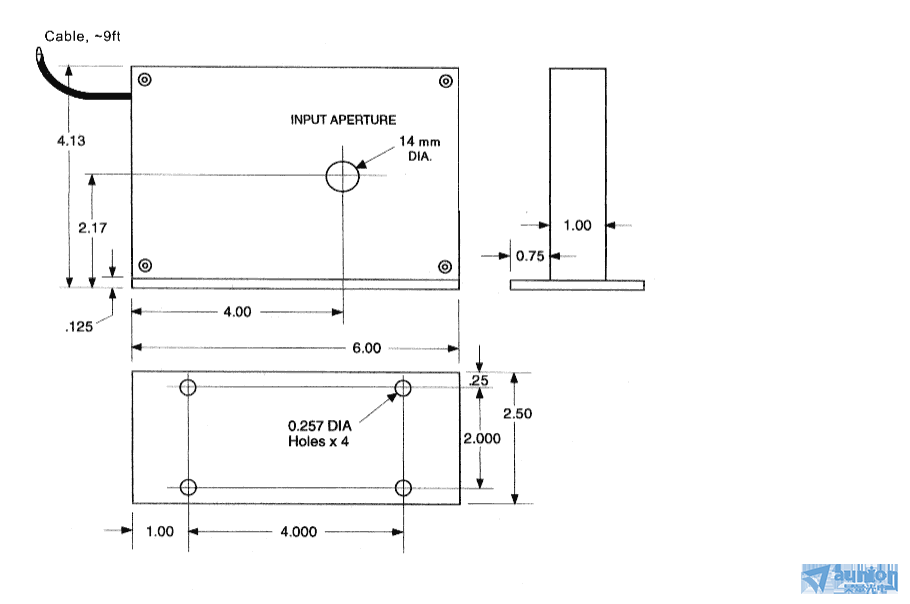

• 300W大功率激光斩波器

HIGH DAMAGE THRESHOLD,HIGH irradiance LASER shutter

昊量光电可以提供可靠的广泛的系列激光斩波器,以满足大多数激光应用的要求.可用于所有的商业激光器.其中机电激光斩波器可提供高达500HZ的重复频率和5KW的光功率处理.同时我们提供定制开发服务以满足您的各种需求.

Features
Optical Power: 1-300 W
aperture Size: 14 mm
Optics: Dielectric
Optics Options
Switching Speed: 40 ms
Position Sensors
Applications
High Energy Pulses
Interlock
Thin Zones
Multi-line Laser

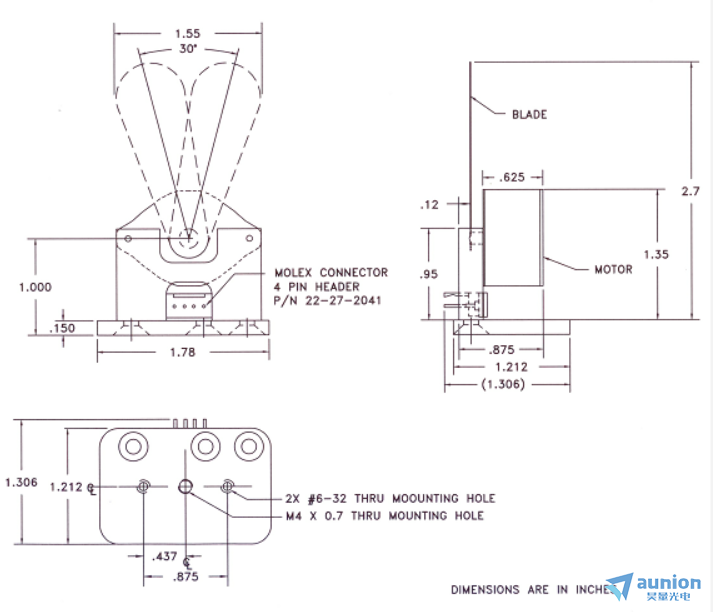

• 微振动中红外激光斩波器




该产品具有高质量,微振动,低成本和长寿命的优良特性.可以从X射线到远红外全波段使用.主要分为频率固定共振斩波器和频率可变机械斩波器.可用于高温,真空和低温环境.具有大型系统和便携式仪器.即使在不利条件下,也表现出优异的性能和可靠性.在工业、商业、科学、医疗、航空和军事中得到广泛的应用.

FEATURES AND ADVANTAGES
 ULTRA LOW VIBRATION SHUTTER
 Aperture size: 0.65" (16mm) dia.
 boxed version aperture size: 0.56" (14mm) dia.
 No clicking or knocking noise (no hard stop)
 Does not create shock and vibration
 response time: 10 mSec
 Can be used as a low frequency chopper
 Frequency response: DC to 25 Hz
 Can be stopped in the OPEN or CLOSE position
 Long life: 100 million cycles min.
 Jitter free operation
 Dark blade, bright optional
 LOW COST
 Simple to operate
 Easy to integrate into OEM products
 Special OEM pricing
 Patented technology
